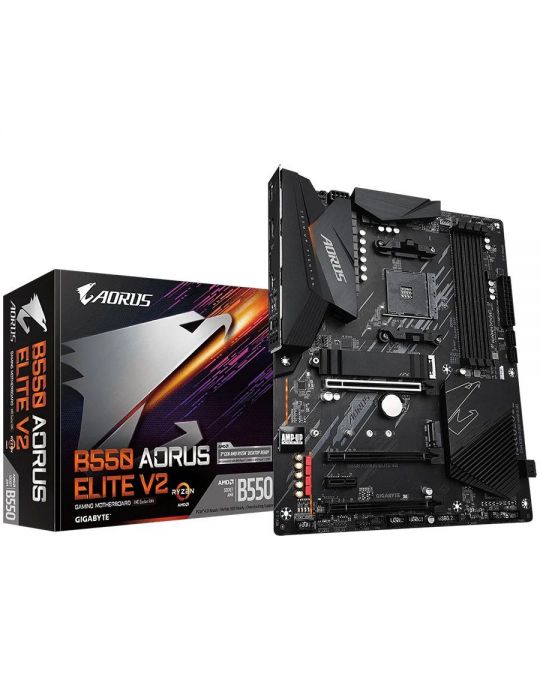

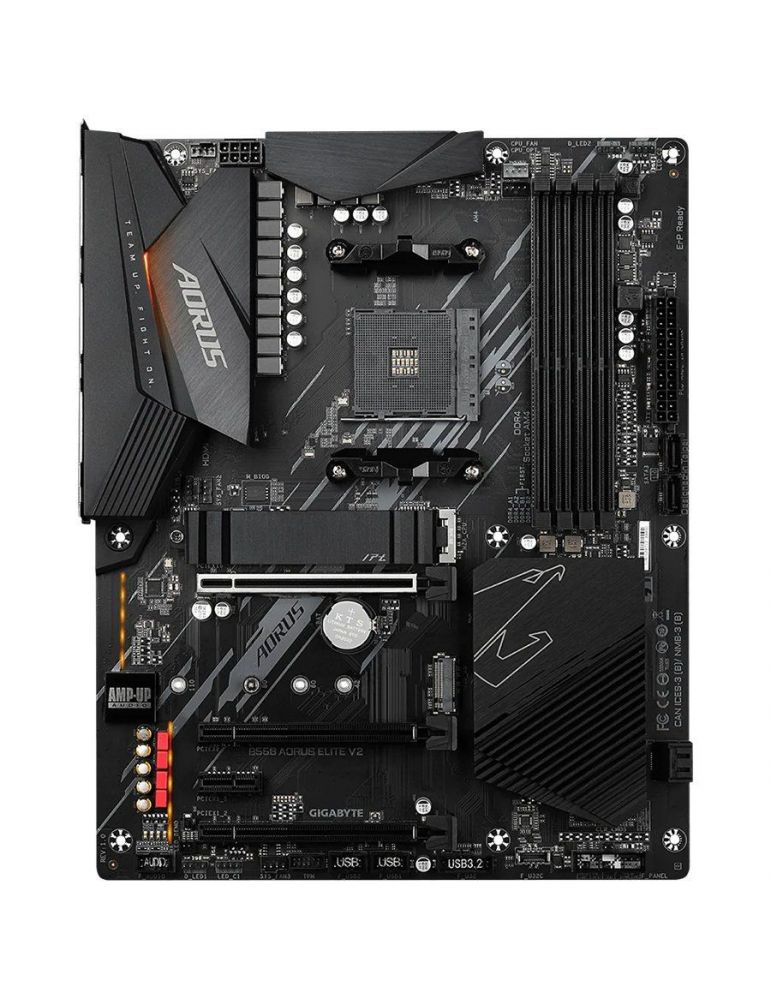

Gigabyte main board desktop b550 aorus elite v2 (am4 4xddr4

Fisa tehnica

Garantie

36

Hdmi

1 (hdmi (type a))

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

2 kg

Greutatea neta a pachetului

1.57 kg

Bucati in pachet

1

Greutatea bruta a cutiei

2 kg

Retail packaging net weight carton

0.1 kg

Retail packaging net weight plastic

0.1 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Locatia dispozitivului

Integrated

Factor de forma

Atx

Inaltime

244 mm

Latime

305 mm

Termen de garantie

36 luni

Ean code

4719331809898

Adancime pachet

335 mm

Grosimea pachetului

270 mm

Inaltime pachet

80 mm

Standard soclu procesor (cpu)

Socket am4

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2667mhz(pc4-21300) ,2933mhz(pc4-23400) ,3200mhz(pc4-25600)

Ofera metode de corectie a erorilor

Ecc/non-ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

128 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Two ddr channels ,unbuffered ,dual rank ,single rank ,xmp

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10,sata iii-600 (4),bstorage controller:/b,pcie/sata (2 x m.2 (key m)),

Lan

1 (rj-45)

Suport protocol legatura date

Gigabit ethernet/fast ethernet/ethernet ,2.5 gbps

Chipset

Amd b550

Usb 2.0

2 (usb 2.0 (type a))

Pci express 3.0 x16

3

Audio chipset

Realtek alc1200

Audio output mode

7.1 channel surround

Standard audio

High definition audio

Displayport

1

Audio interface

5 (3.5-mm minijack)

S/pdif-out optical

1

Prevazut cu cpu

Amd ryzen series 3rd generation

Lan integrated

Yes

Bios type

Ami

Bios features

Gigabyte q-flash ,gigabyte xpress install ,pnp 1.0a support ,uefi ,smbios 2.7 support ,dmi 2.7 support ,acpi 5.0 support

Hardware monitoring

Cpu temperature ,cpu voltage ,system temperature ,system voltage

Audio integrated

Yes

Usb 3.2 gen 1

3 (usb 3.2 (type a))

Power connectors type

24+8 pin

Usb 3.2 gen 2

2 (usb 3.2 (type a))

Mainboard features

Fan speed control

Pci express x1

1
